lead acid replacment

12.8-25.6V Series Lead Acid Battery

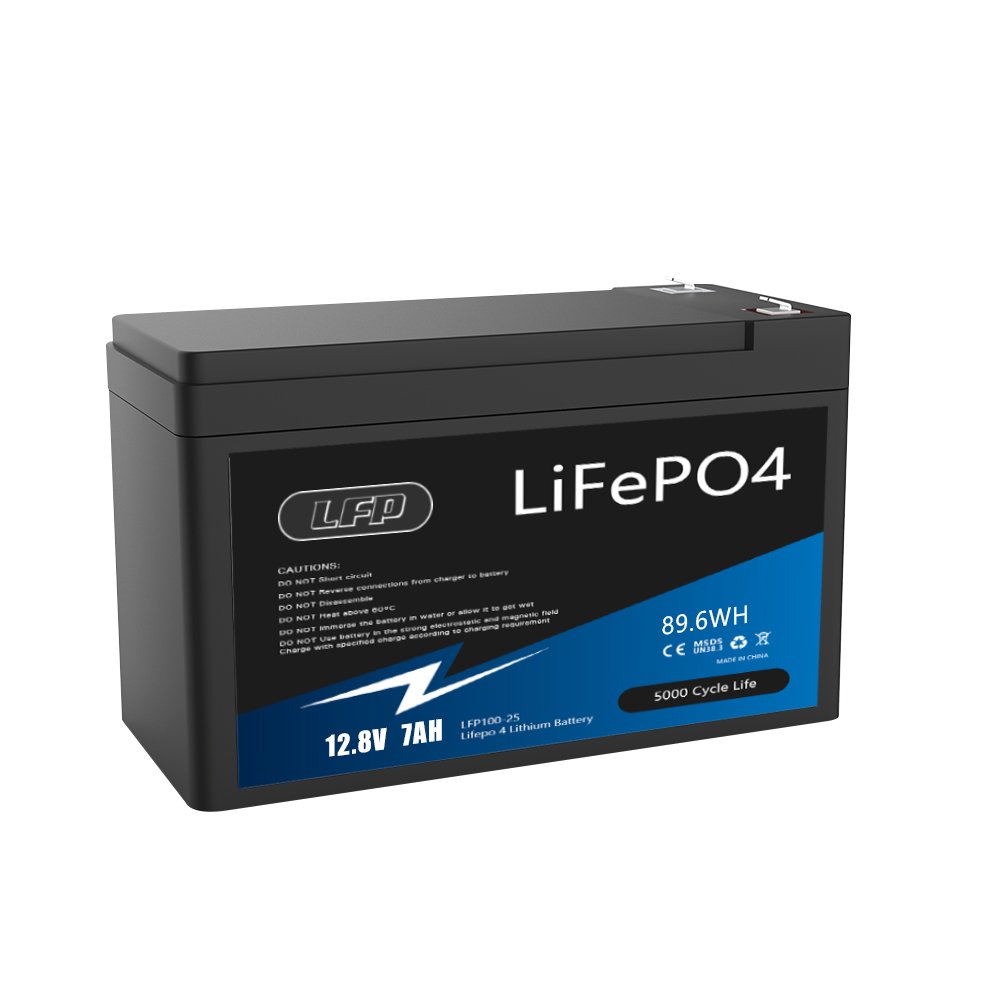

7ah

12.8v 7Ah

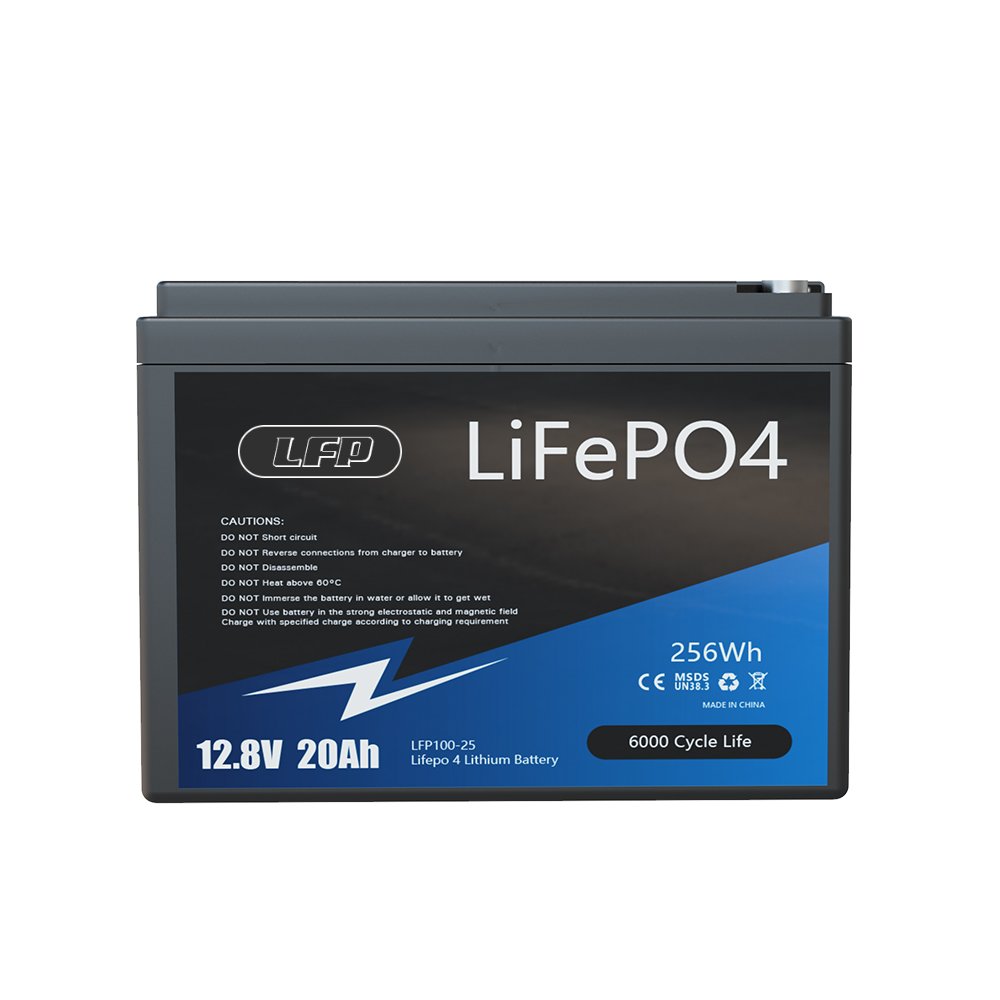

20ah

12.8v 20Ah

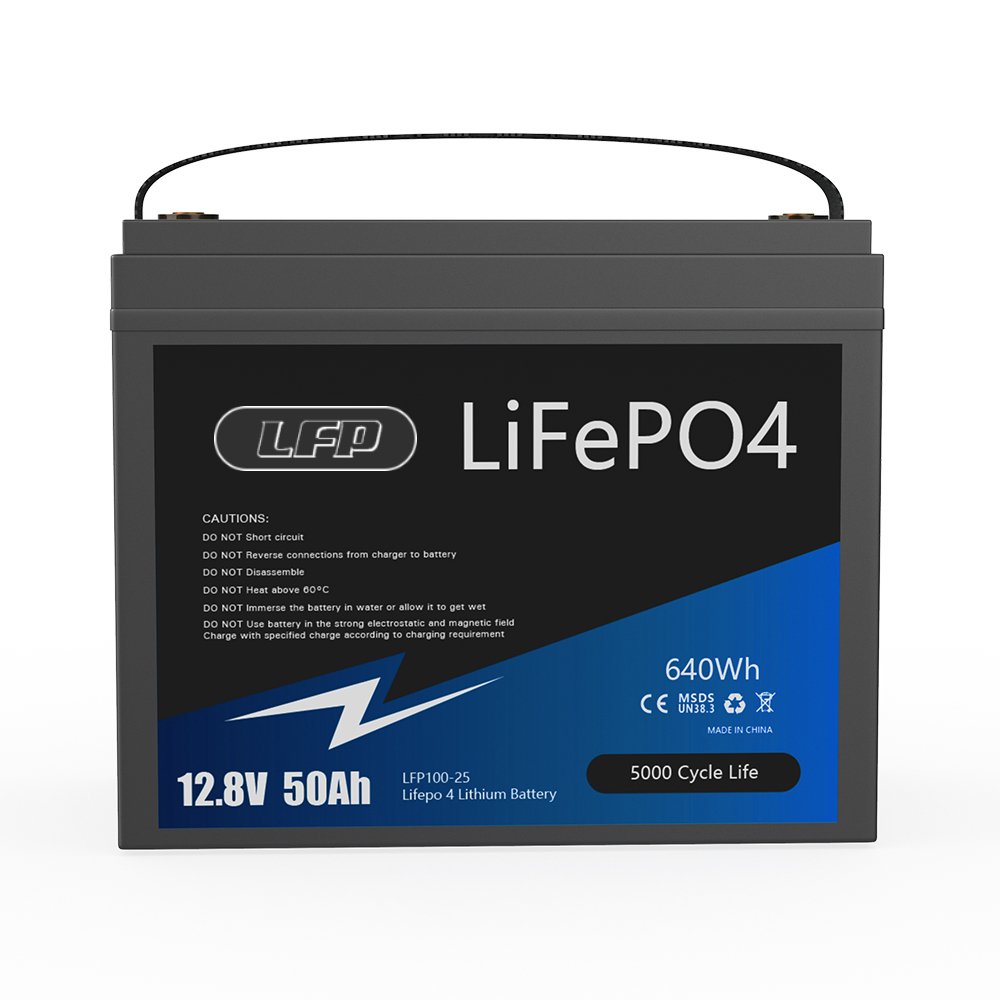

50ah

12.8v 50Ah

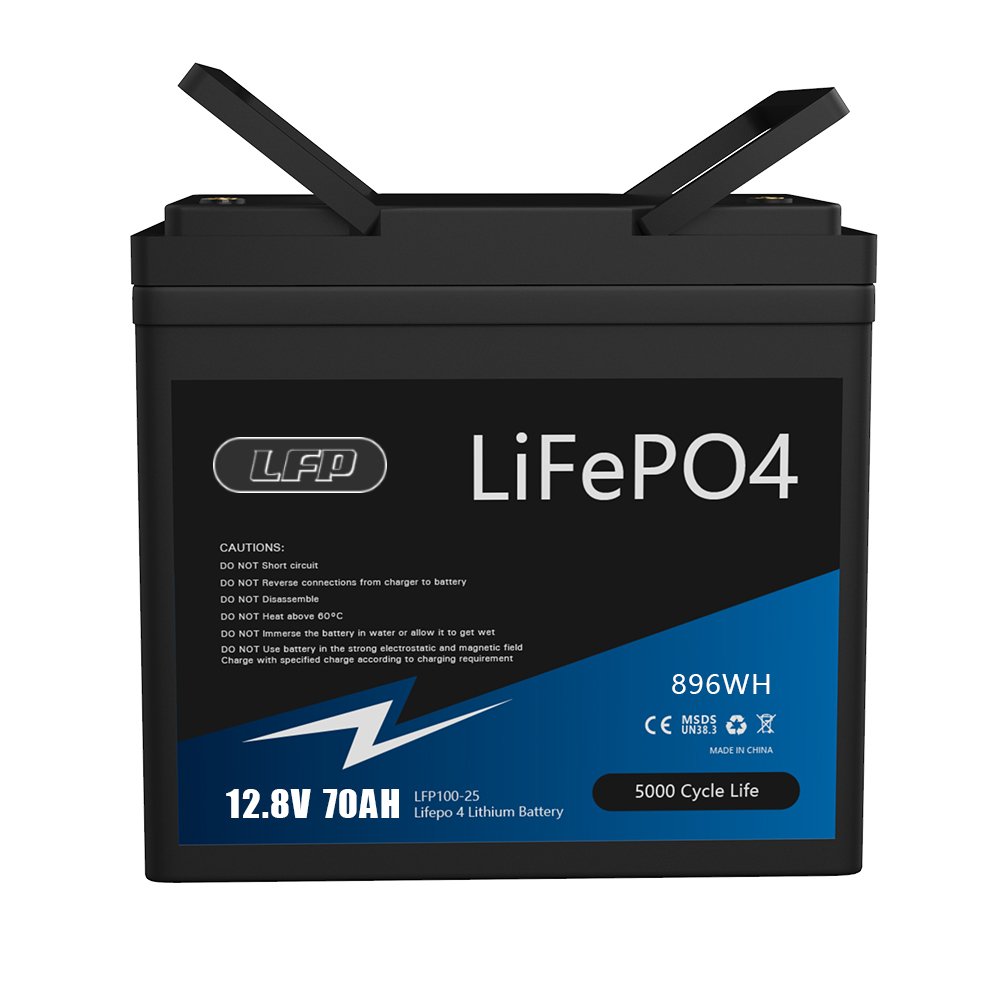

70ah

12.8v 70Ah

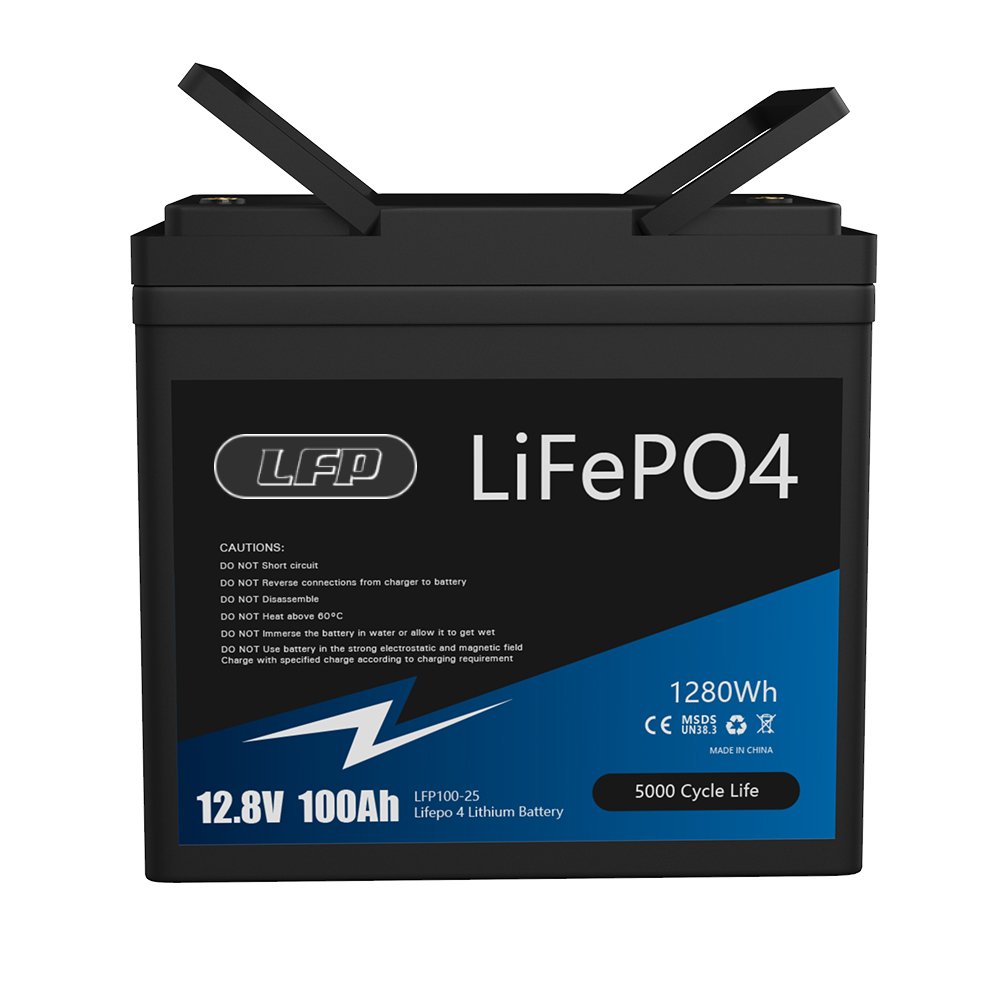

100ah

12.8v 100Ah

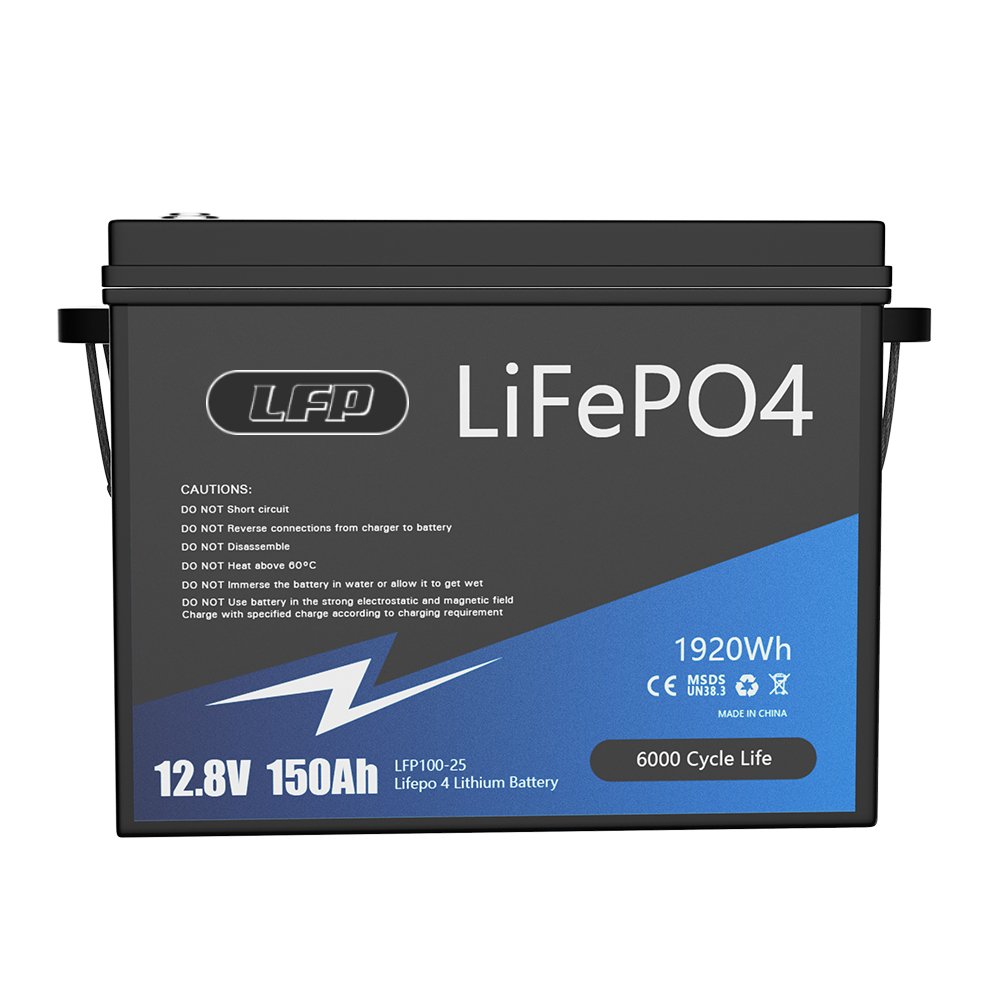

150ah

12.8v 150Ah

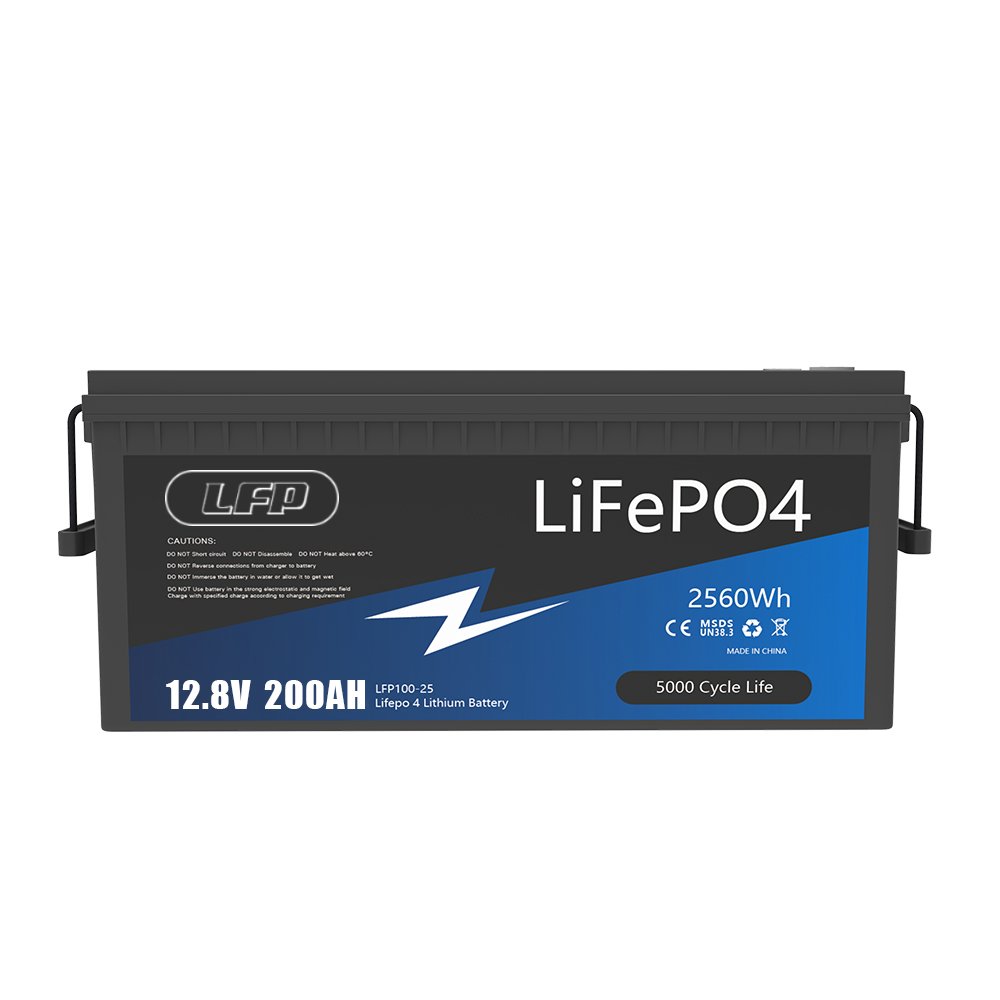

200

12.8v 200Ah

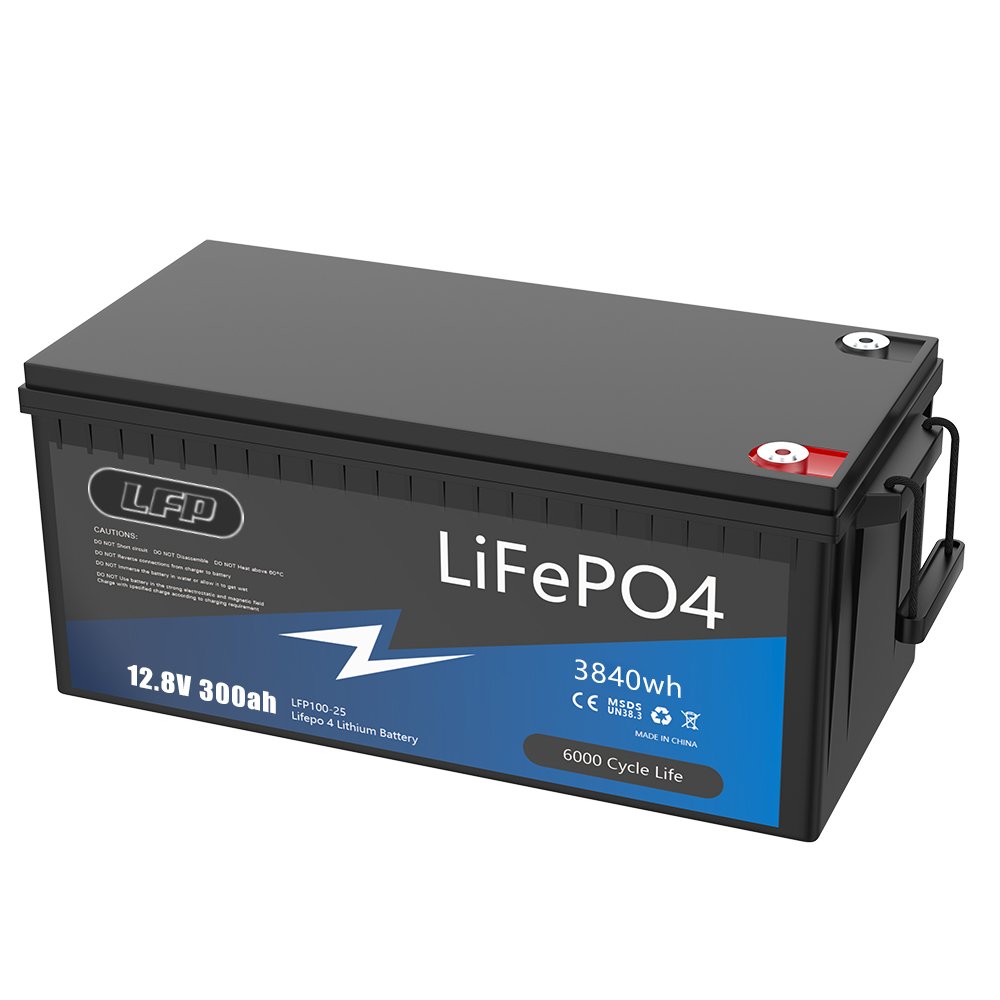

300ah

12.8v 300Ah

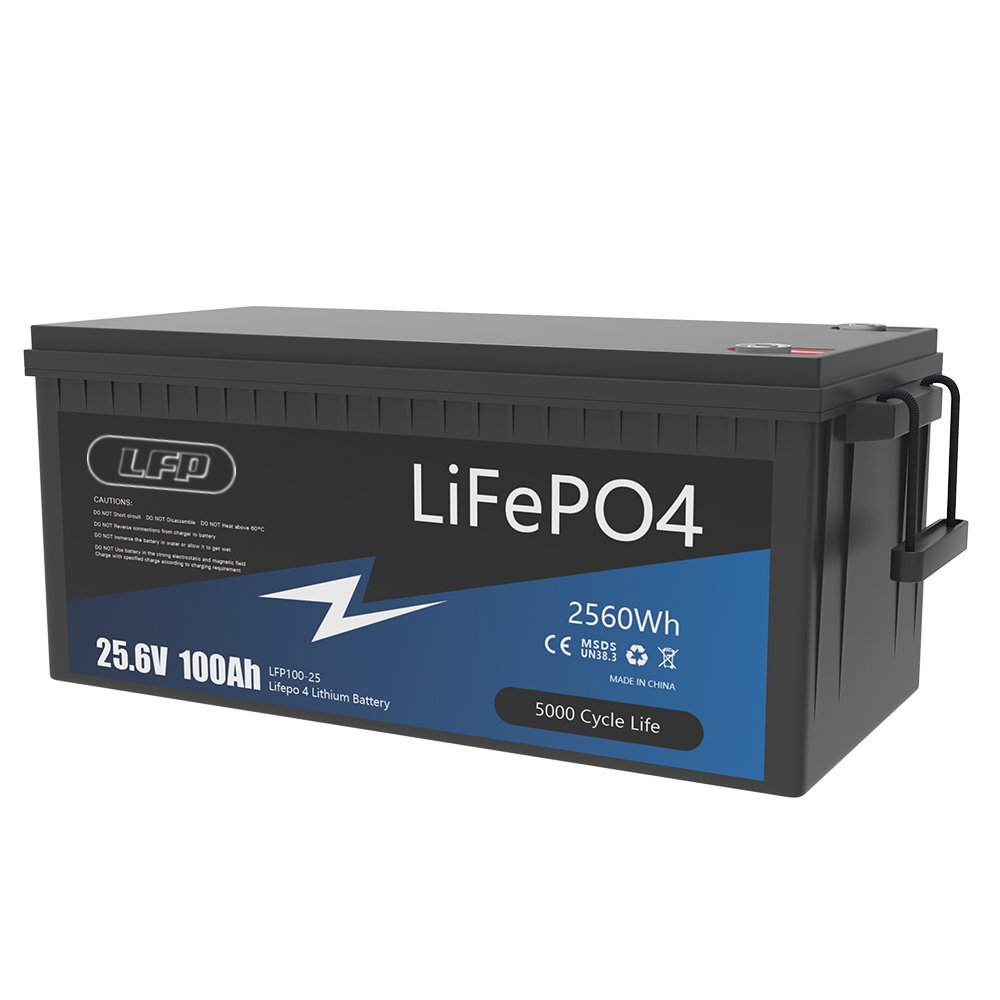

25.6 100ah

25.6v 100Ah

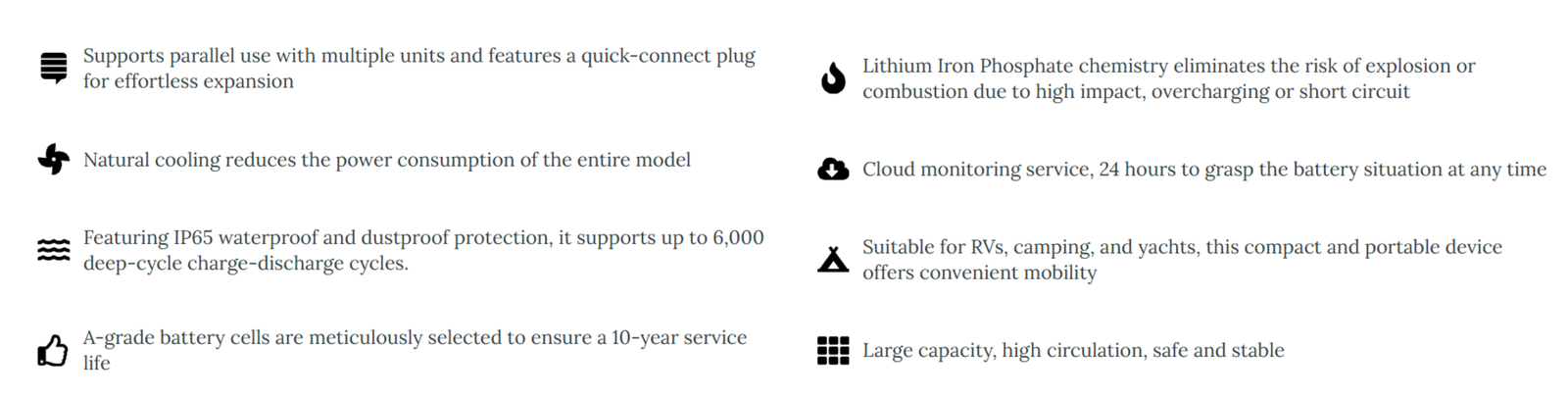

Screenshot Capture 2025 09 30 16 54 16
Product ModelD112007D112020D112050D112075D112100D112150D112200D112300
Nominal Voltage12.8V12.8V12.8V12.8V12.8V12.8V12.8V12.8V
Battery Capacity89.6WH253WH640WH960WH1280WH1920WH2560WH3840WH
Nominal Capacity Energy7Ah20Ah50Ah75Ah100Ah150Ah200Ah300Ah
Operating Voltage10V- 14.6V10V- 14.6V10V- 14.6V10V- 14.6V10V- 14.6V10V- 14.6V10V- 14.6V10V- 14.6V
Maximum Charging Current7A20A50A75A100A100A100A100A
Maximum Discharge Current7A20A50A75A100A100A100A100A
Cell Type328002265146261481343214050160119421732055417320071173204
Housing MaterialPlasticsPlasticsPlasticsPlasticsPlasticsPlasticsPlasticsPlastics
Dimensions150*65*94±2mm176*166*125mm299*138*208mm256*165*210mm256*165*210mm337*180*212mm337*180*212mm522*240*218mm
Weight1.05Kg2.5Kg6Kg7.3Kg10.5Kg16Kg22Kg30.5Kg
