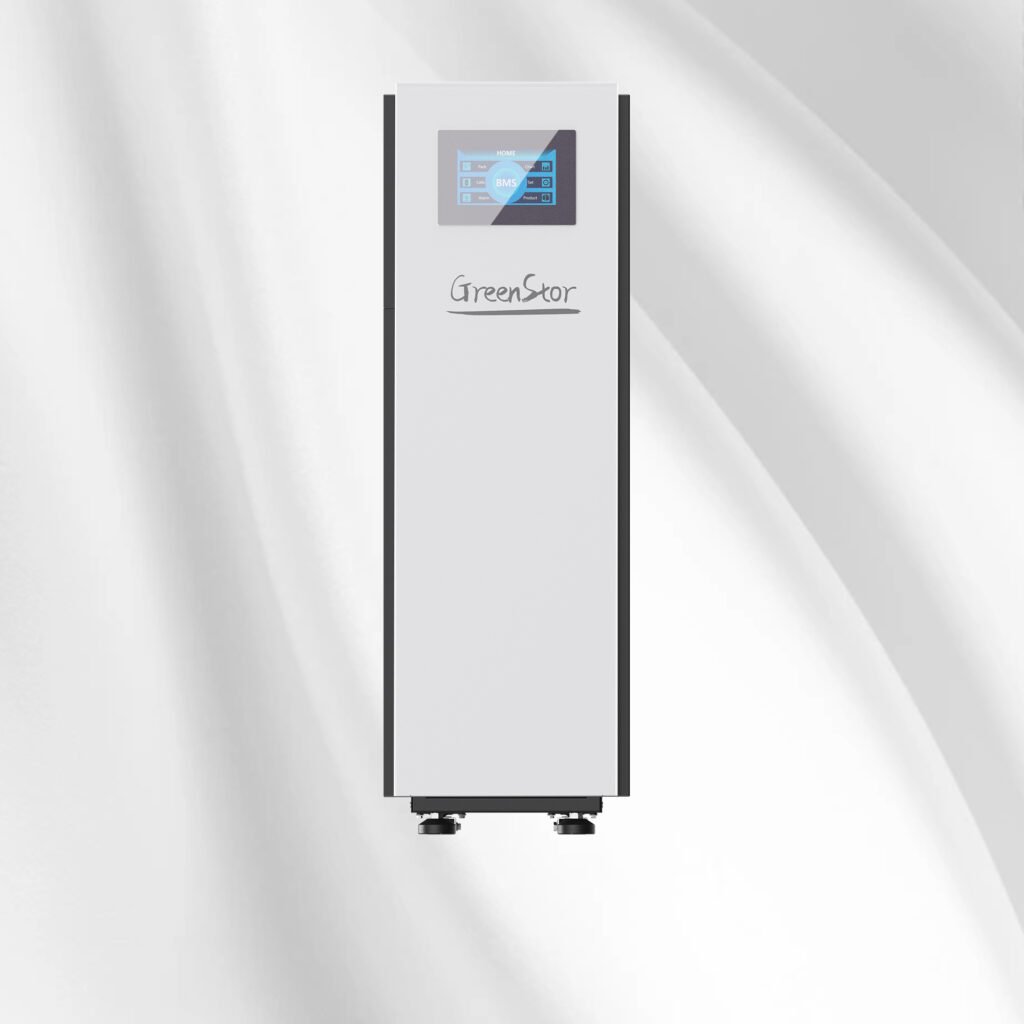

16kwh Vertical Battery

立式

DHA 150A/100A

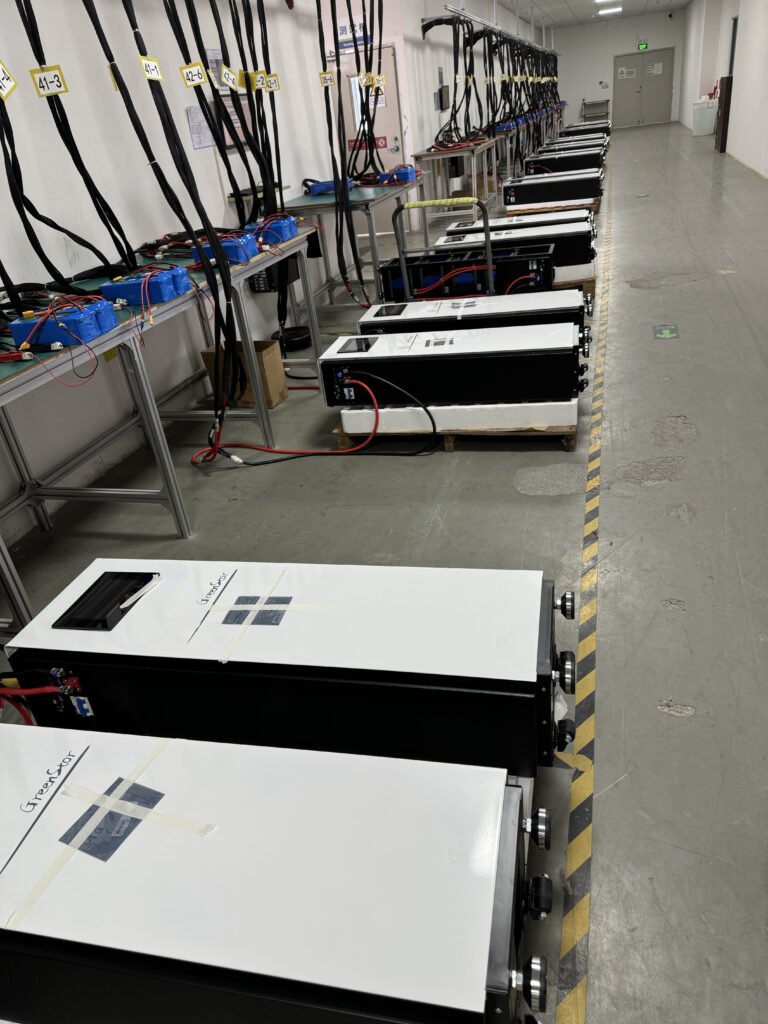

16kwh

DHA 150B/100A

fe36f060c34927b2a5076bab1b74c74

DHA 150A/200A

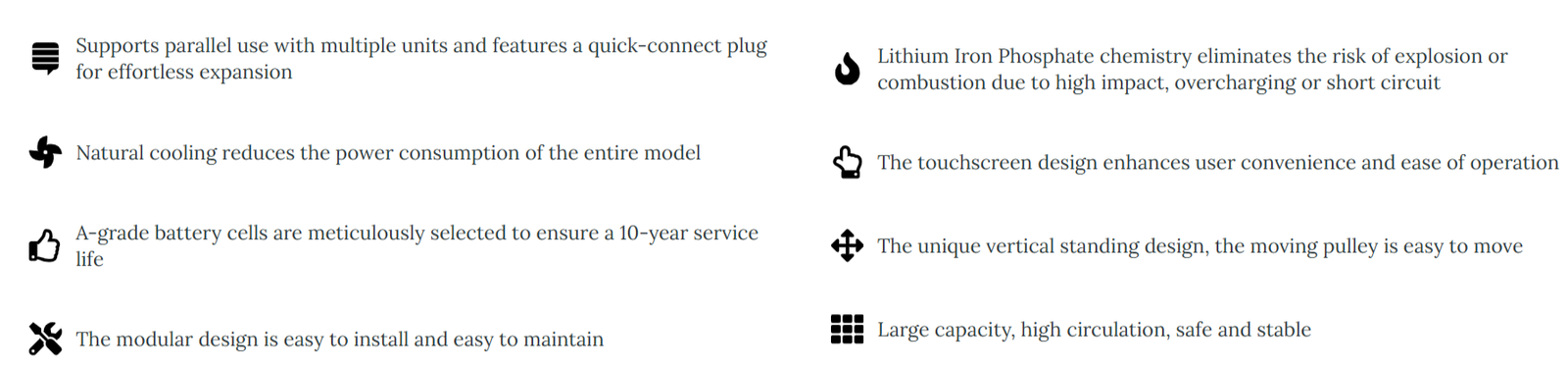

screenshot capture 2025 10 01 20 14 47
Product ModelDHA 150A/100ADHA 150B/100ADHA 150A/200ADHA 150B/200A
Rated Voltage51.2V51.2V51.2V51.2V
Rated Capacity280Ah314Ah280Ah314Ah
Rated Energy14336Wh16076Wh14336Wh16076Wh
Weight130Kg140Kg130Kg140Kg
Dimensions(L*V*H)1190*390*238 4mm1190*390*238 4mm1190*390*238 4mm1190*390*238 4mm
Standard Charge Current75A75A150A150A
Standard Discharge Current75A75A150A150A
Max. Charging Current100A100A200A200A
Max. Discharging Current100A100A200A200A
Peak Charging Current110A(3S)110A(3S)220A 3S220A 3S
Peak Discharging Current110A(3S)110A(3S)220A 3S220A 3S
Breaker Current120A120A240A240A
Max. Charging Voltage57.6V57.6V57.6V57.6V
Over Discharge Voltage40V40V40V40V
Max. Number of Parallel16 Pieces16 Pieces16 Pieces16 Pieces
