Racked-Mounted Storage Batteries

6851aa15602b94f7a49afdc2eee34680

DGA50

jjj

DGA51

机架

DGA52

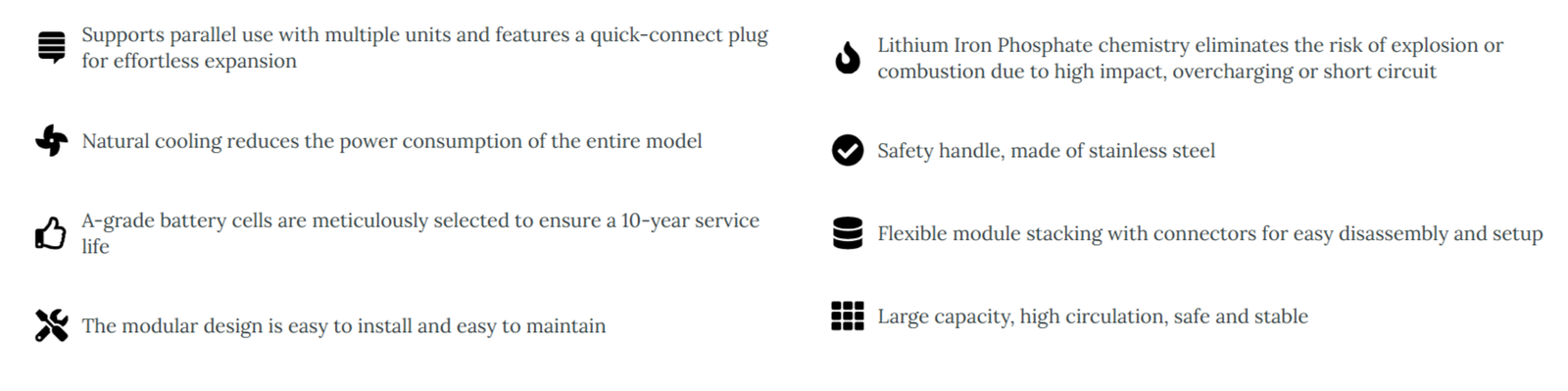

screenshot capture 2025 10 01 22 54 41
ItemSpecifications
Nominal Voltage51.2V
Nominal Capacity100Ah
Energy5.12KWh
Working voltage40 ～58.4V
Charge Voltage58.4V
Standrad Charge Current20A
Max Charge Current100A
Discharge Cut-off Voltage40V
Standard Discharge Current20A
Max Discharge Current100A
Cell ModelLF100LA 3.2V/100Ah
Housing MaterialCold Rolled Steel Plate
Dimensions440*480*133±2mm
Weight≈ 48kg
