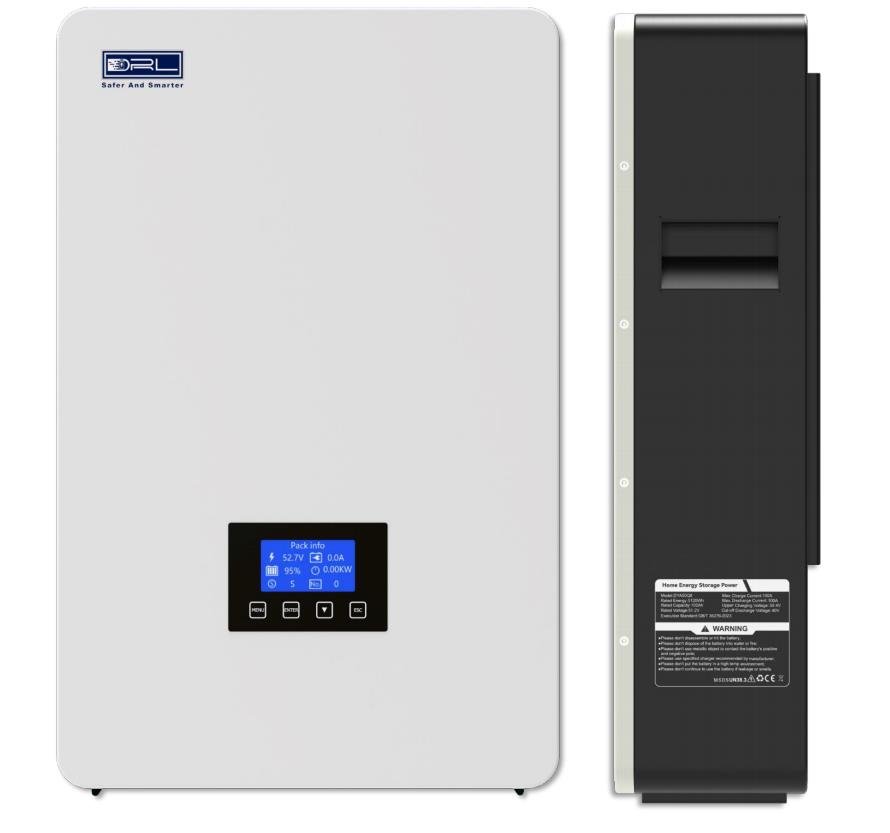

5KWh Wall Mounted

5kwh wall mounted

DYA50Q

wall mounted

DYA51Q

壁挂

DYA52Q

screenshot capture 2025 09 27 10 37 23 (1)
ItemSpecifications
Nominal Voltage51.2V
Nominal Capacity200Ah
Energy10240Wh
Working Voltage40～58.4V
Charge Voltage58.4V
Standrad Charge Current40A
Max Charge Current100A
Discharge Cut-off Voltage40V
Standard Discharge Current40A
Max Discharge Current100A
Cell ModelLFP 50160116 3.2V 100Ah
Housing MaterialCold Rolled Steel Plate
Dimensions725*550*162±2mm
Weight≈83kg
